DirtFirst Racing Offers A Competitive Electric Motocross Race Bike- The 2023 KTM Freeride Supermini

DirtFirst Racing and Hollywood Movie Bikes have teamed up to offer the first race ready Supermini Electric motocross bike. Aimed at 12-16 year old Mini MX racers, this ground-breaking bike starts as a production KTM machine that is then modified to the specifications of the Team’s race-winning bikes. The Freeride EXC is a true KTM product that has been available to the public for almost ten years, until recently only in European markets. This bike has the rock solid reliability and worldwide parts network you would expect from any KTM product. This same chassis has been the basis of not only the Freeride EXC, but also the Freeride 250cc and 350cc gas-powered models.

Over the last two years, DirtFirst Racing has race-tested and developed the production KTM Freeride EXC into a bike capable of competing head to head with Supermini-class gas bikes in AMA competition. The Supermini classes are traditionally the final step before racers graduate to full size race bikes, and the Freeride Supermini begins to fill the gap between the smaller KTM SX5E and the full size electric race bikes that we know are on the horizon.

Team DirtFirst riders Rocco Morse and Tommy Luera have competed in MX, GP, and desert races throughout Southern California, helping the Team gain the valuable real-time race data that the major electric motorcycle manufacturers have yet to openly pursue. That’s right, we have been at the track working on suspension, battery swaps, quick charging, gearing, basically all aspects of racing electric bikes in real-world situations.

DirtFirst Racing has stocked their inventory to supply a limited run of these unique machines. These bikes have the high-quality components and cutting-edge technology that only a private race team operation can provide.

Many electric bike manufacturers have visions of their bikes winning races, but DirtFirst Racing has actually done it. Get a head start on the coming Electric Revolution with the only competitive Mini MX racing bike currently available.

2023 DIRTFIRST RACING KTM FREERIDE SUPERMINI SPECIFICATIONS

WP 43mm XACT AER Forks

WP XPLOR 5746 Rear Shock

Excel 19/16″ Wheelset w/Faster USA Hubs and Dunlop MX33 Tires

Renthal Sprockets and DID ERT3 Chain

Brembo SXF Brake Systems w/Rear Foot Brake and ARC Front Brake Lever

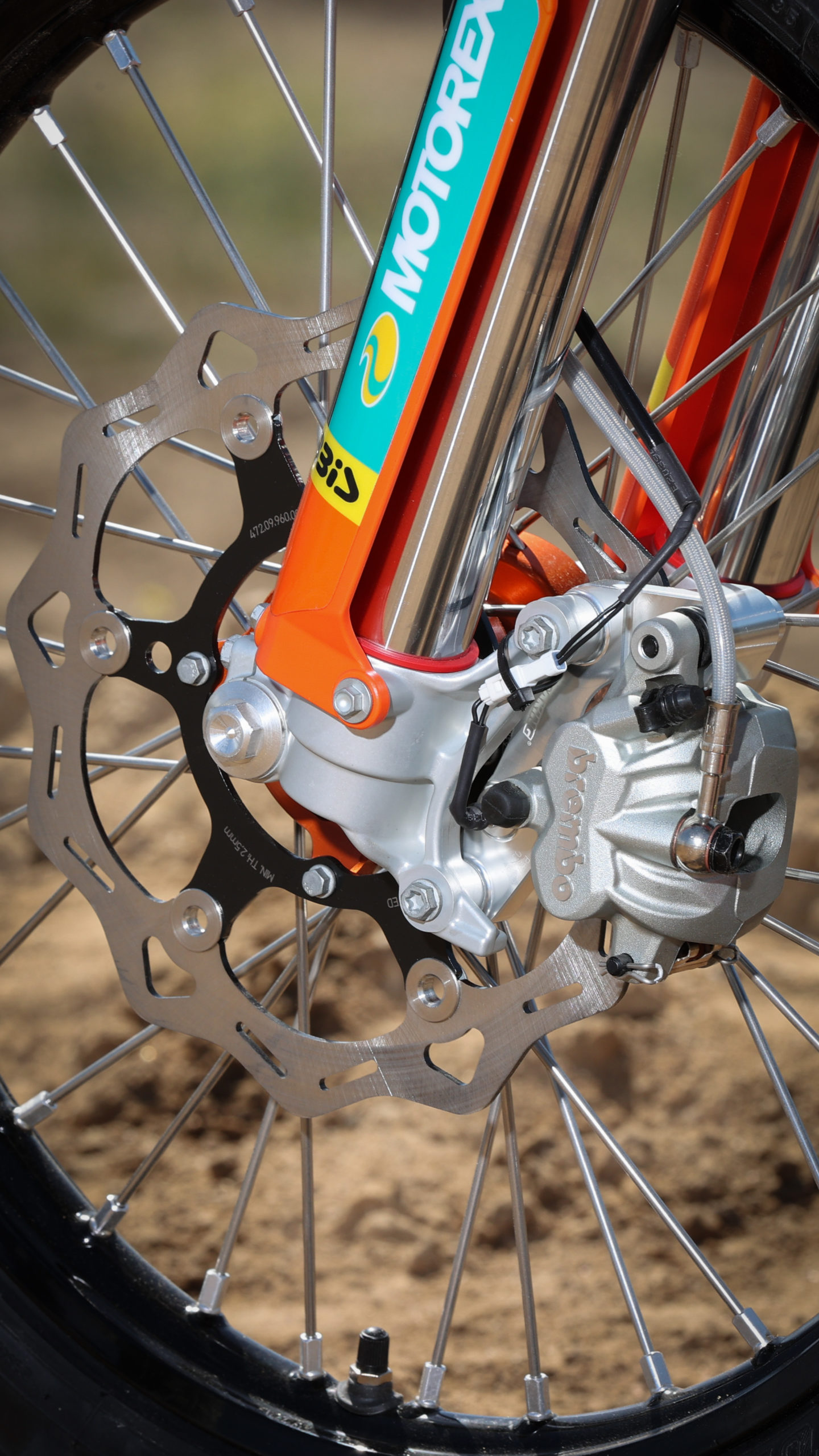

Galfer 260mm Floating Front Brake Disc

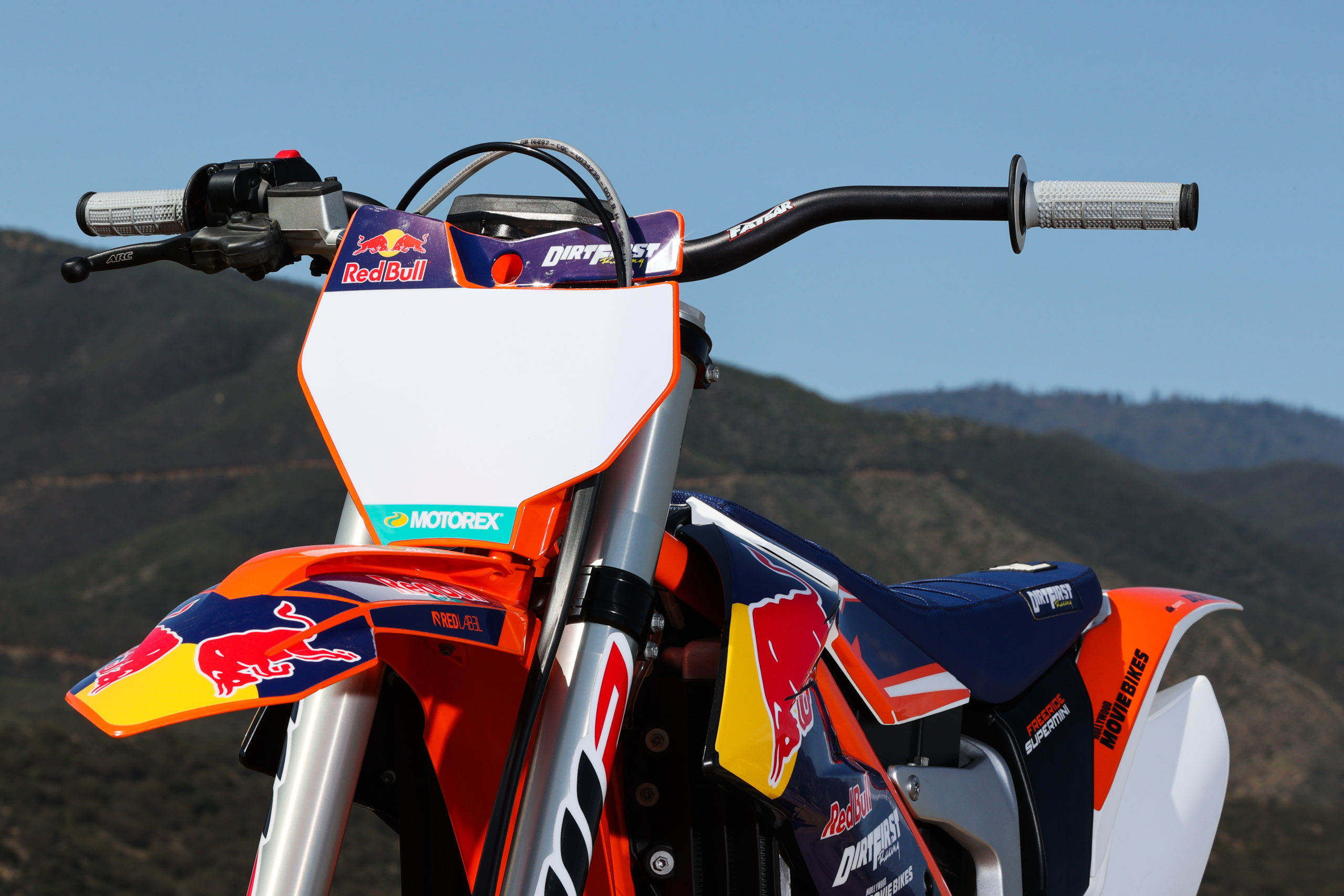

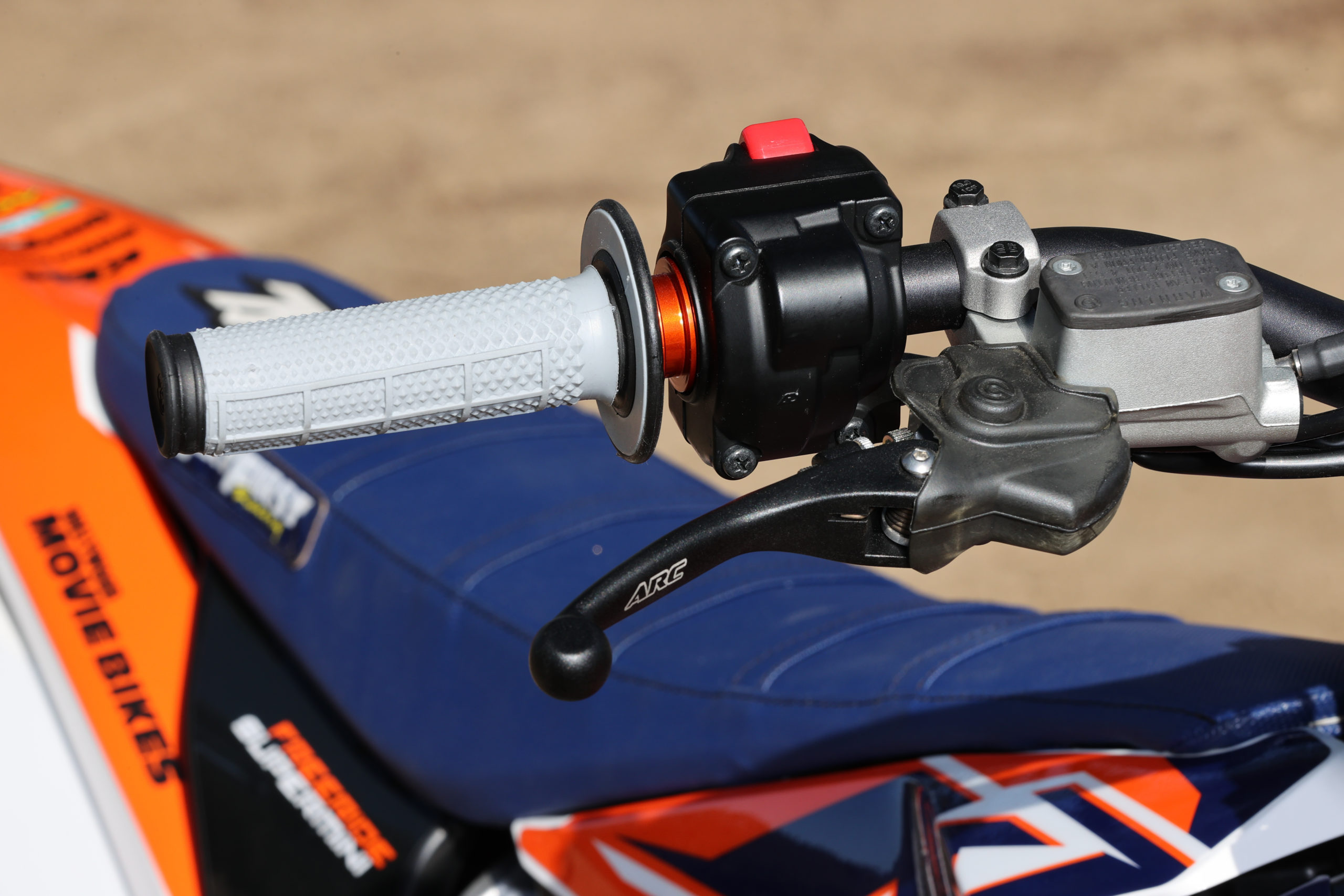

Renthal Bars and Grips w/G2 Billet Throttle Tube

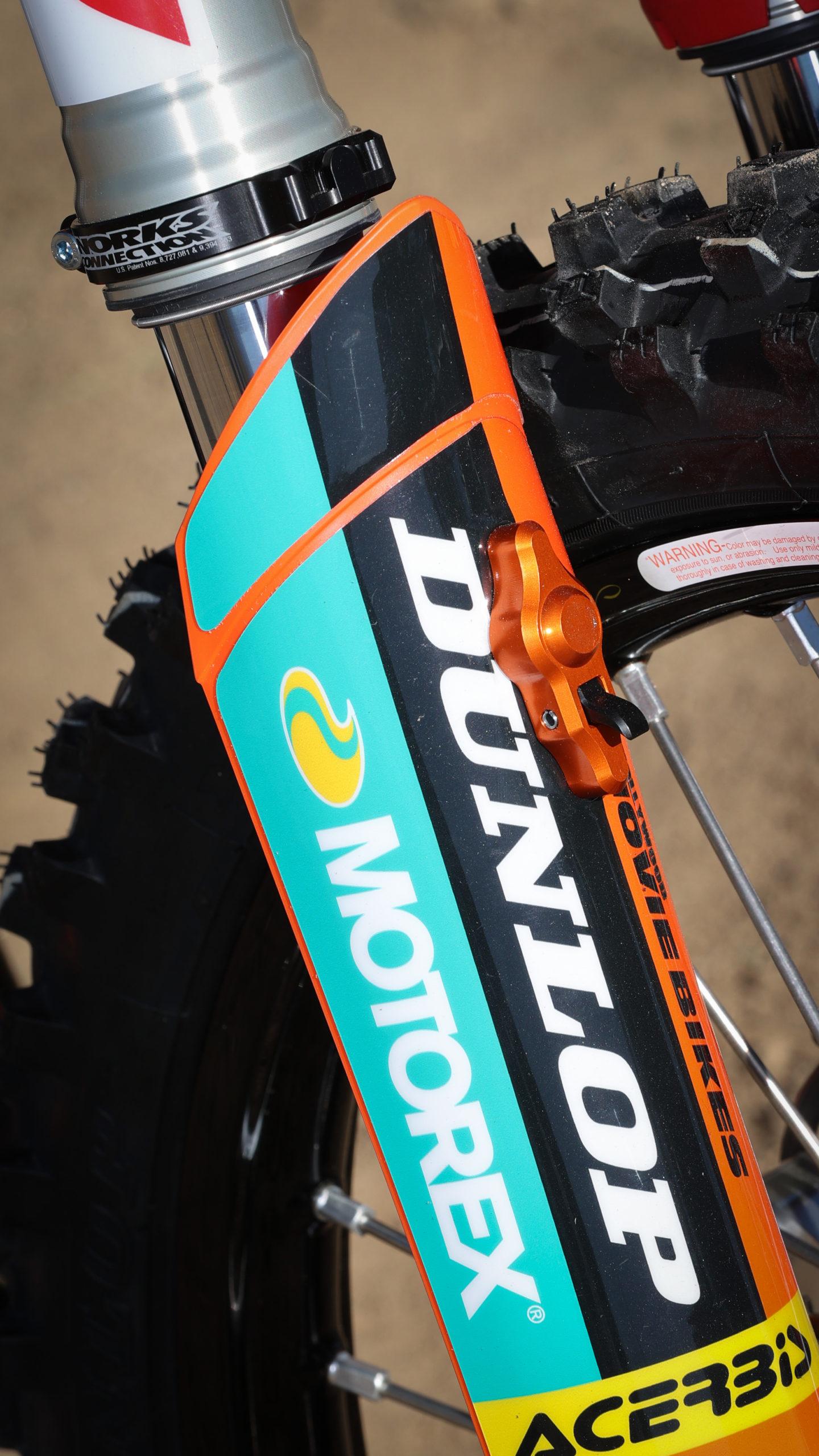

Raptor Titanium Footpegs and Works Connection Holeshot Device

DirtFirst Aluminum Skid Plate and Key Switch Mount

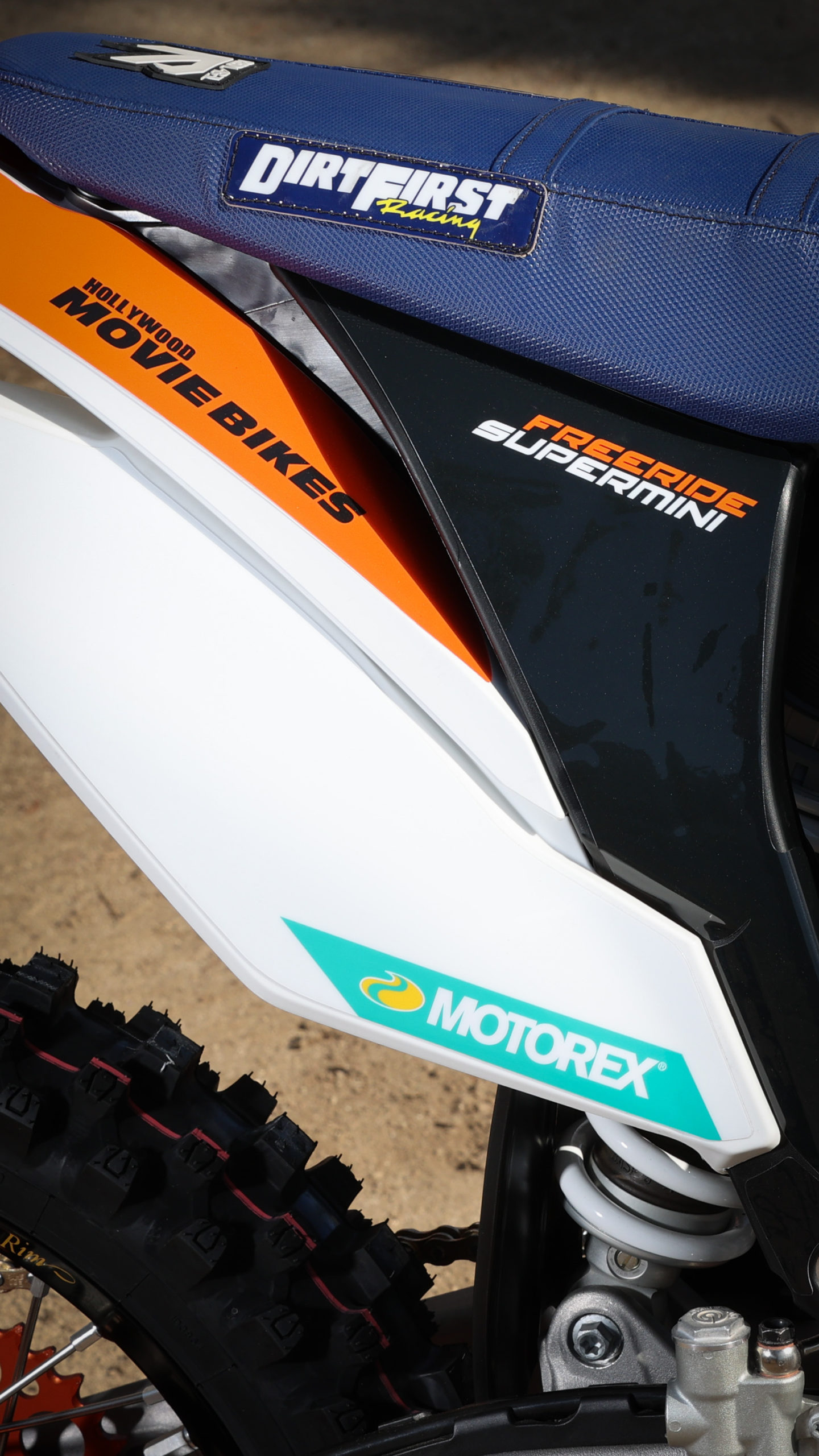

Acerbis MX Body Kit w/Factory Edition Replica Graphics and Seat Cover

232 lbs – 33.75in seat height – 24.5hp

SUPERMINI POWER

24.5hp max motor output is comparable to current gas bikes such as the Kawasaki KX112, KTM 85SX 19/16, and Honda CRF150RB, with a smooth power delivery and no clutching or shifting.

SUBSTANTIAL RANGE

Easily run full motos on National MX tracks on a single charge. We have run two 5-lap motos on Glen Helen’s Main track on one charge.

FAST CHARGING

Top off the battery in between motos with the included 220V fast charger. The battery charger runs on a 3500w generator for use at the track. A fully spent battery charges to 100% in less than 2 hours. 220 VOLT POWER IS NECESSARY FOR CHARGER.

QUICK CHANGE BATTERIES

Swapping batteries takes 30 seconds, with no special tools and no plug connectors to worry about. Spare batteries available for purchase directly from KTM.

BREMBO SXF BRAKE SYSTEMS

An all-OEM foot-operated rear brake, 260mm Galfer floating front disc, and the same high quality calipers and master cylinders from the current KTM SXF models.

WP SUSPENSION

The WP 43mm AER Fork and WP XPLOR rear shock setup is fully adjustable for 110lb-140lb riders.

The DirtFirst Racing Freeride Supermini is available for order now. Contact andy@dirtfirstracing.com for more information.

FULL SPECIFICATIONS

Engine- Permanent magnet synchronous motor

Maximum electric power- 18kW(24hp)

Maximum torque- 42Nm(31lb ft)

Maximum motor speed- 7000rpm

Battery- Powerpack HV Lithium Ion

Battery voltage- 260V nominal

Battery capacity- 3.9kWh

Cooling system- Water cooled, electric water pump

Frame- Perimeter, steel/aluminum composite

Fork- WP XACT 43mm AER, 10.95in of travel

Fork offset- 20mm

Rear shock- WP XPLOR 5746, 10.24in of travel

Rear wheel- 16″x1.85″ Excel rim

Front wheel- 19″x1.40″ Excel rim

Front brake disc- Galfer 260mm floating

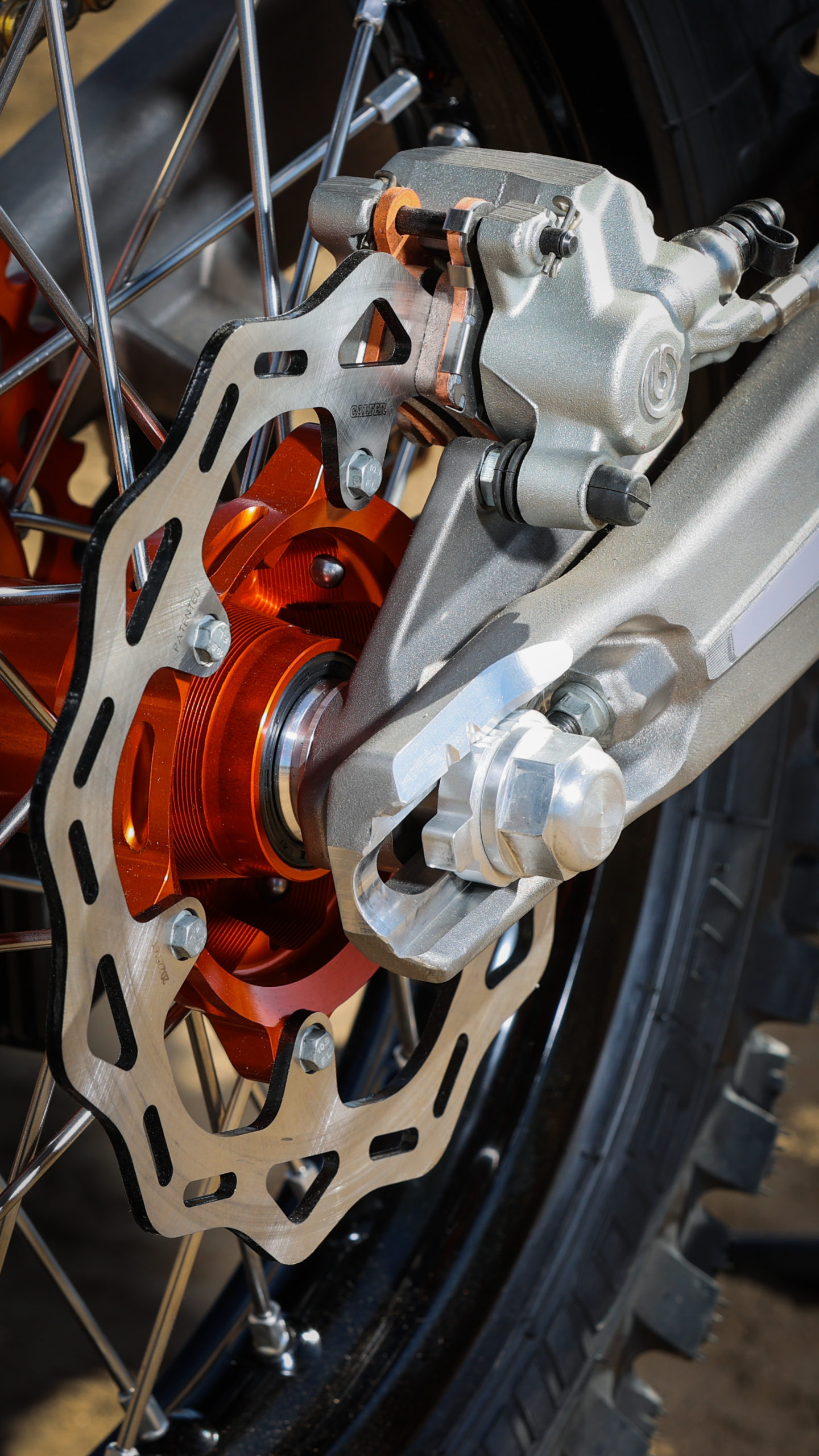

Rear brake disc- Galfer 220mm

Primary transmission ratio- 1:2.4

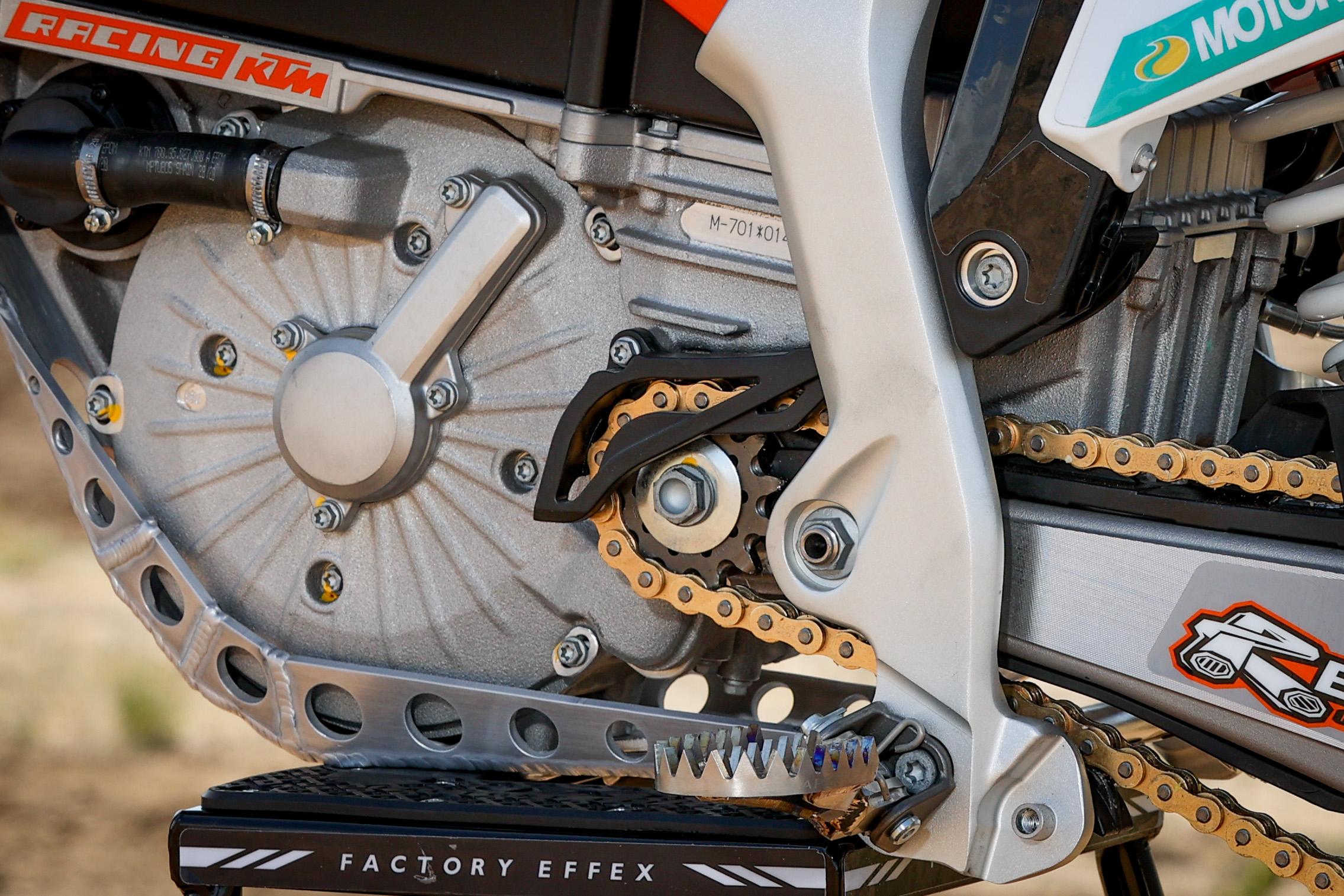

Final drive ratio- 13:46, Renthal sprockets

Chain- DID 520 ERT

Wheelbase- 55.44in

Seat height- 33.75in

Ground clearance- 12.50in

Overall weight with battery and fluids- 232lbs

Battery weight- 64lb

2023 DirtFirst Racing KTM Freeride Supermini

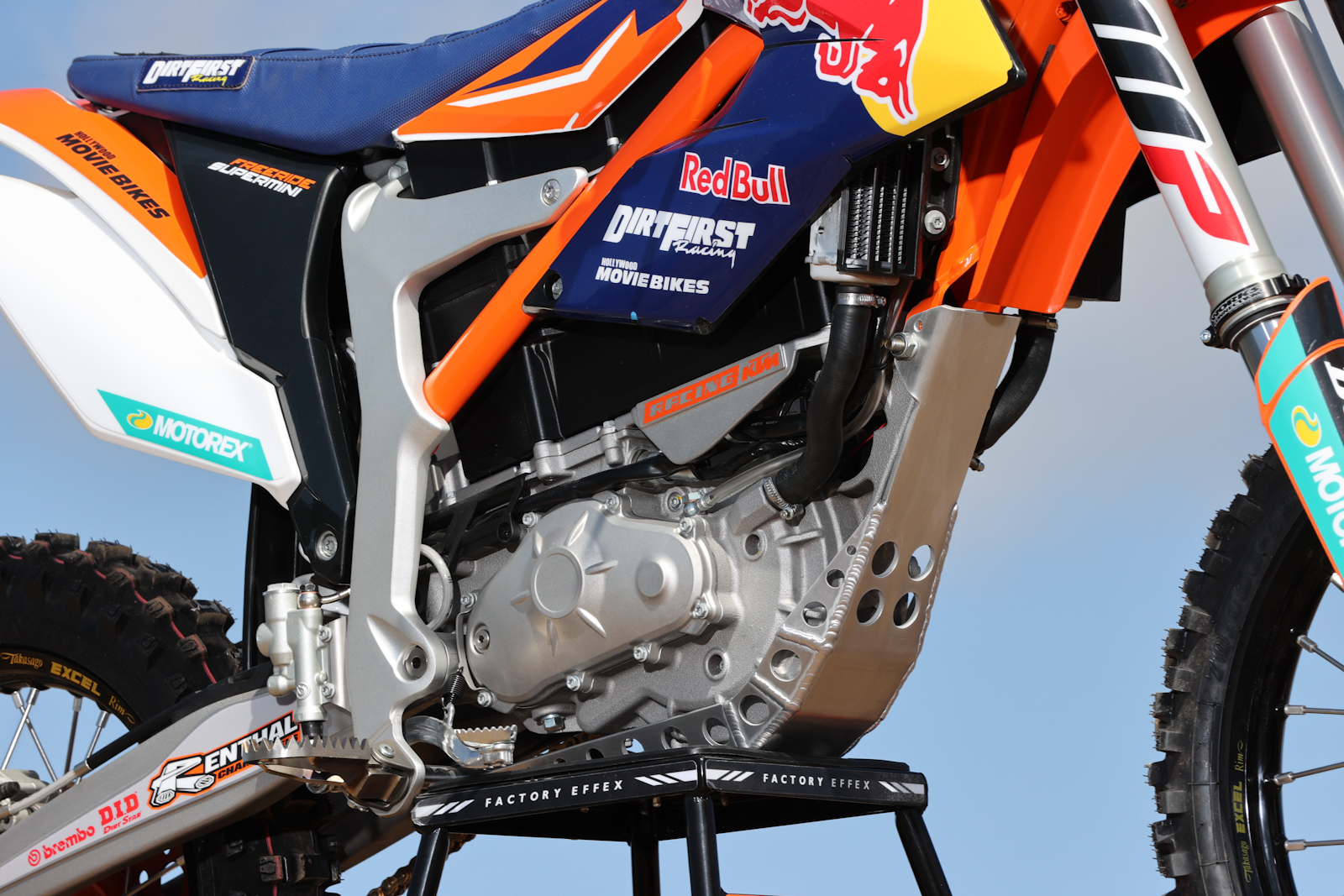

The 18KW Output Motor is protected by a DirtFirst Racing Skidplate
